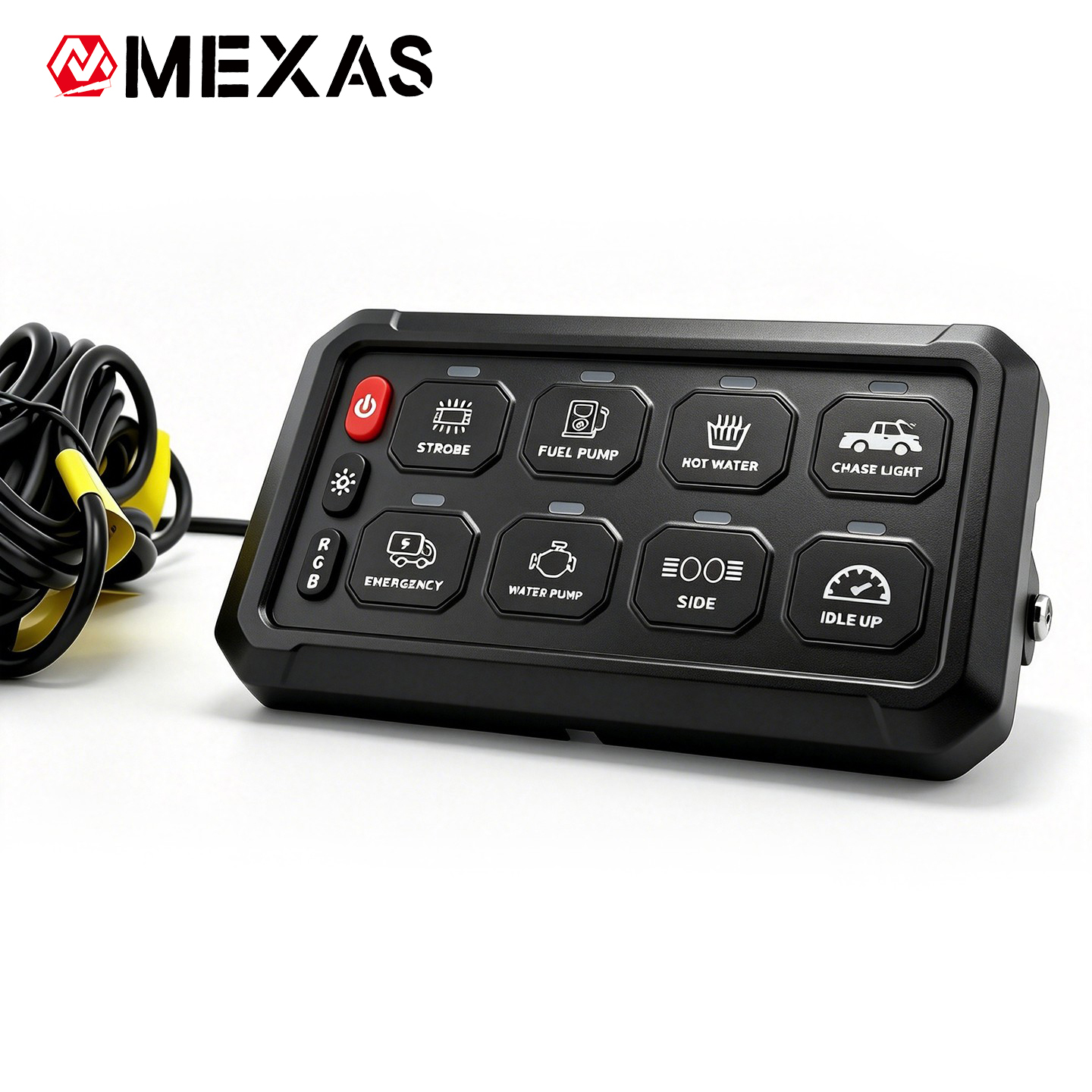

8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles

No.SP04
This 8-Channel Wired Version Switch Panel is ideal for centralized control of lights, horns and auxiliary electrical devices. Wide application for 12V & 24V vehicles, including car, SUV, UTV, truck, boat, etc. For lighting controls, it supports constant, momentary, slow flash and strobe light modes.
Operating Voltage
12V-24V DC
Maximum Current
60A
Working Temperature
-40℃ ~ 85℃
Material
Plastic
4 Mode Setting
Constant, Momentary, Slow Flash, Strobe
Backlight Color
RGB
Warranty
1 Year
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles
  • 8-Channel Wired Version Switch Panel Controller for 12V & 24V Vehicles

Description

 Features:
Individual setting for 4 modes: constant / momentary / slow flash / strobe
☆ Toggle (Red): Constant light mode, ideal for driving light, fog light, etc.
☆ Momentary (Blue): Hold to ON, release to OFF (like horn).
☆ Slow Flash (Purple): Press to flash, press again to stop.
☆ Strobe (Green): Press to strobe, press again to stop.

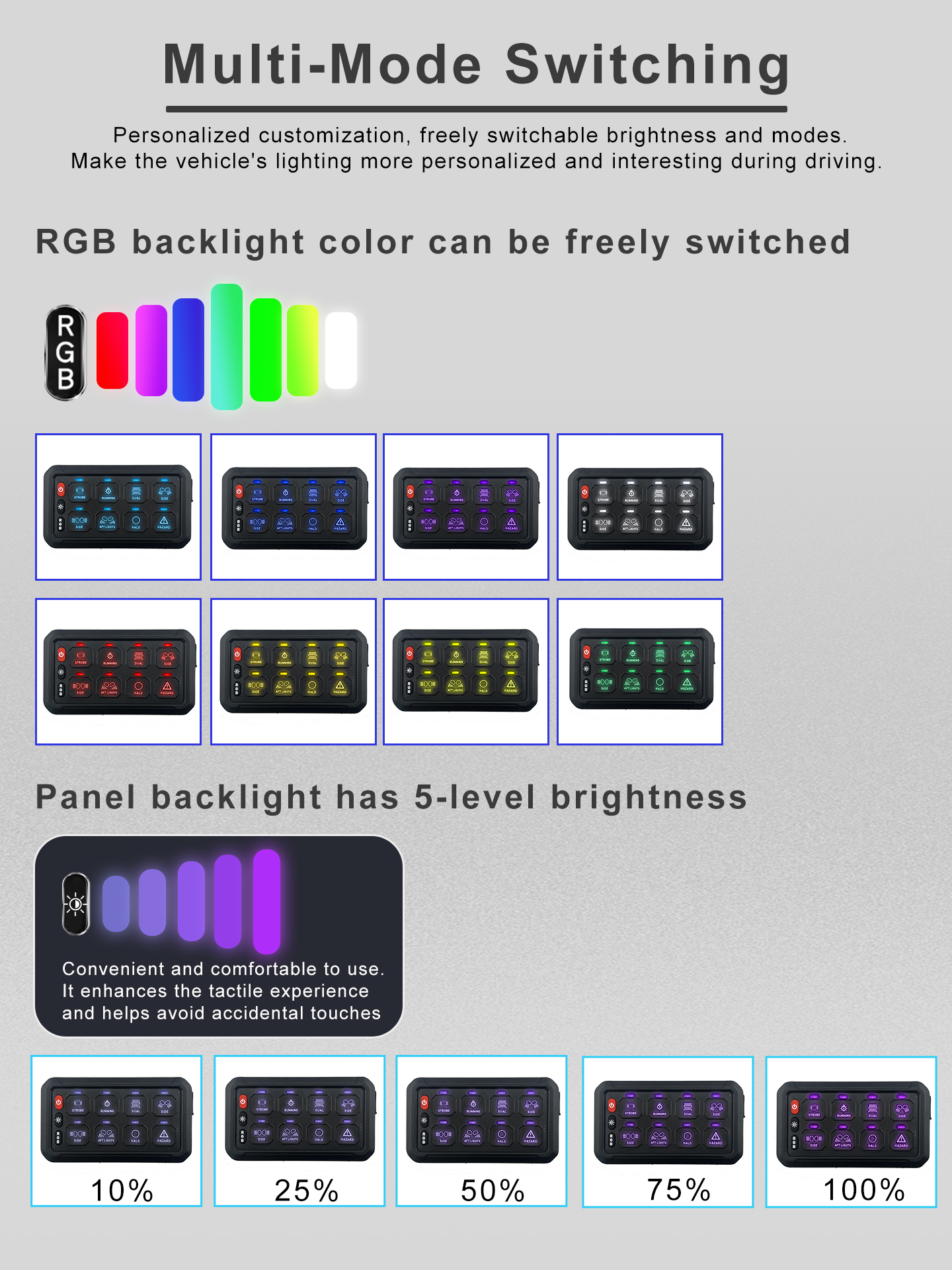

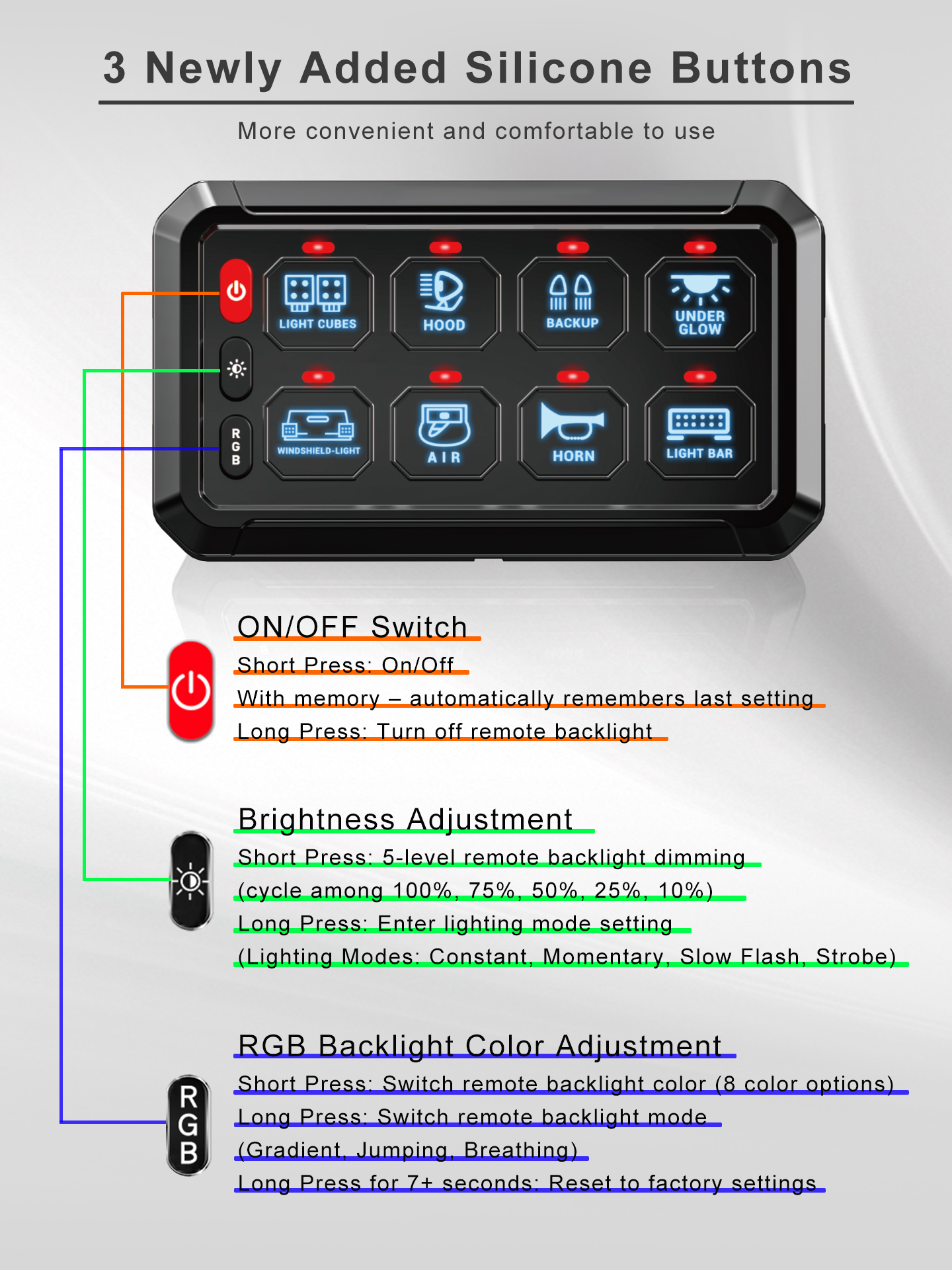

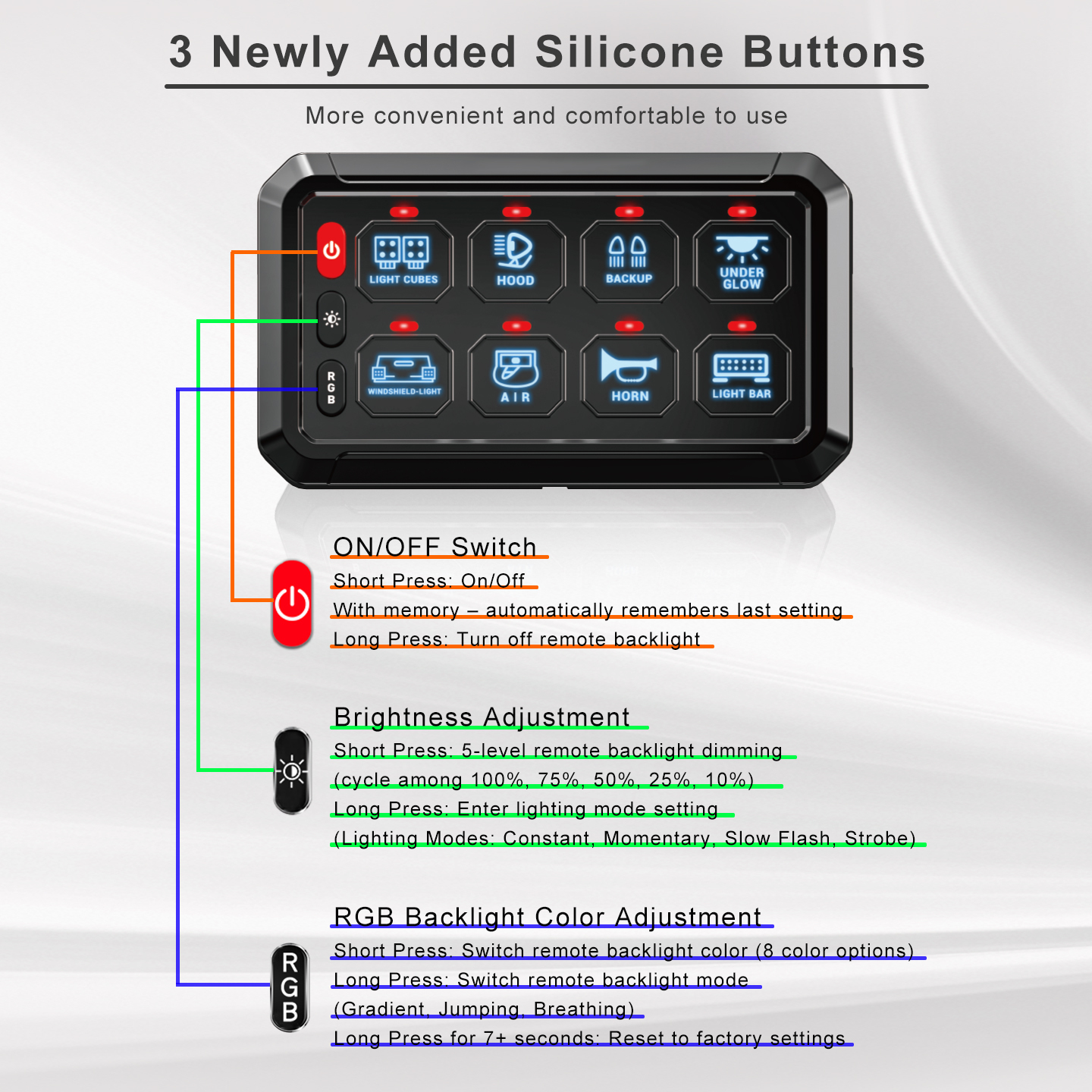

Able to adjust RGB backlight brightness and color.

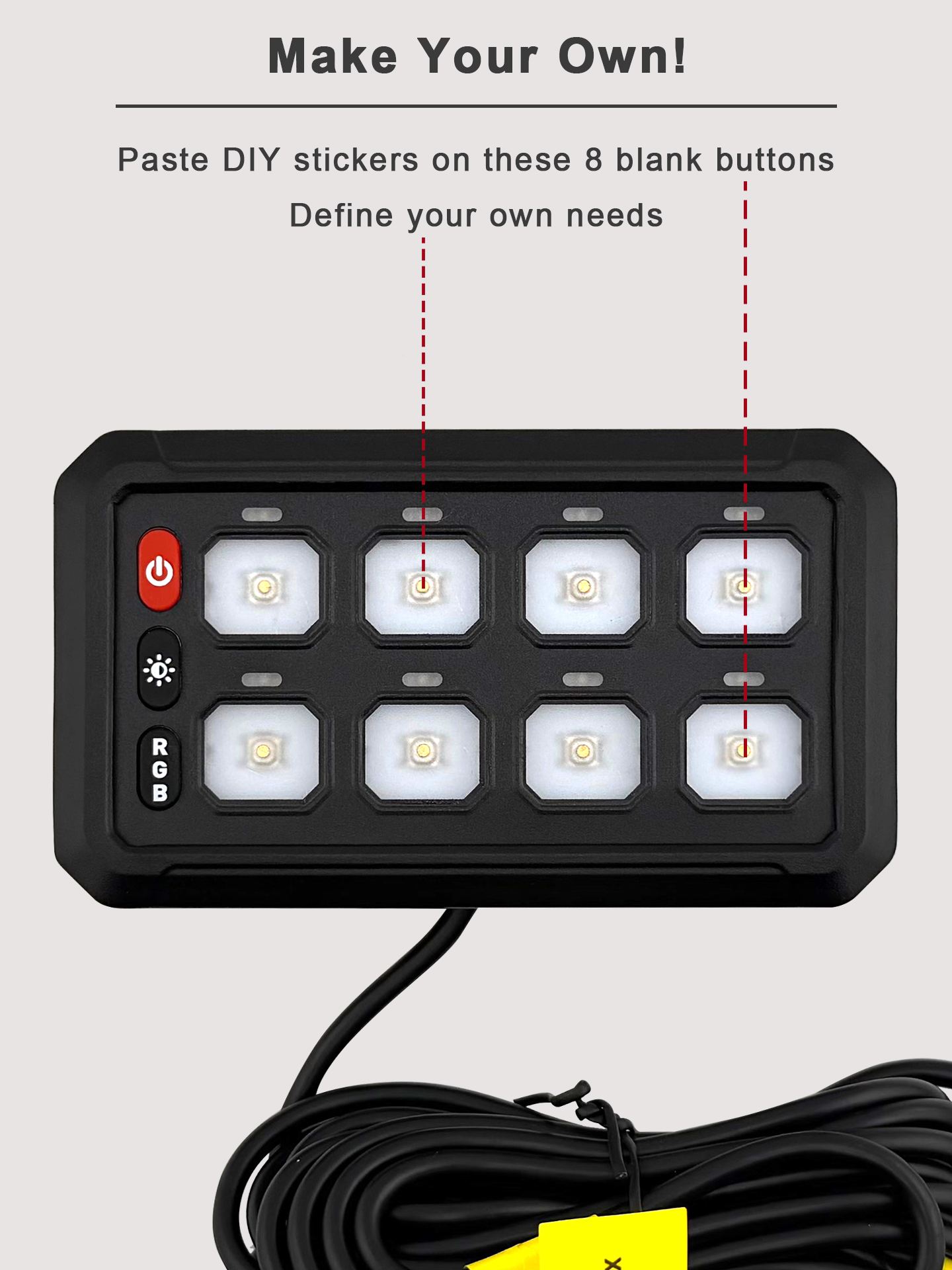

140 PVC stickers are included to define your own needs.
Wide application, can be installed on 12V-24V DC vehicles.
Easy installation, simple wiring.

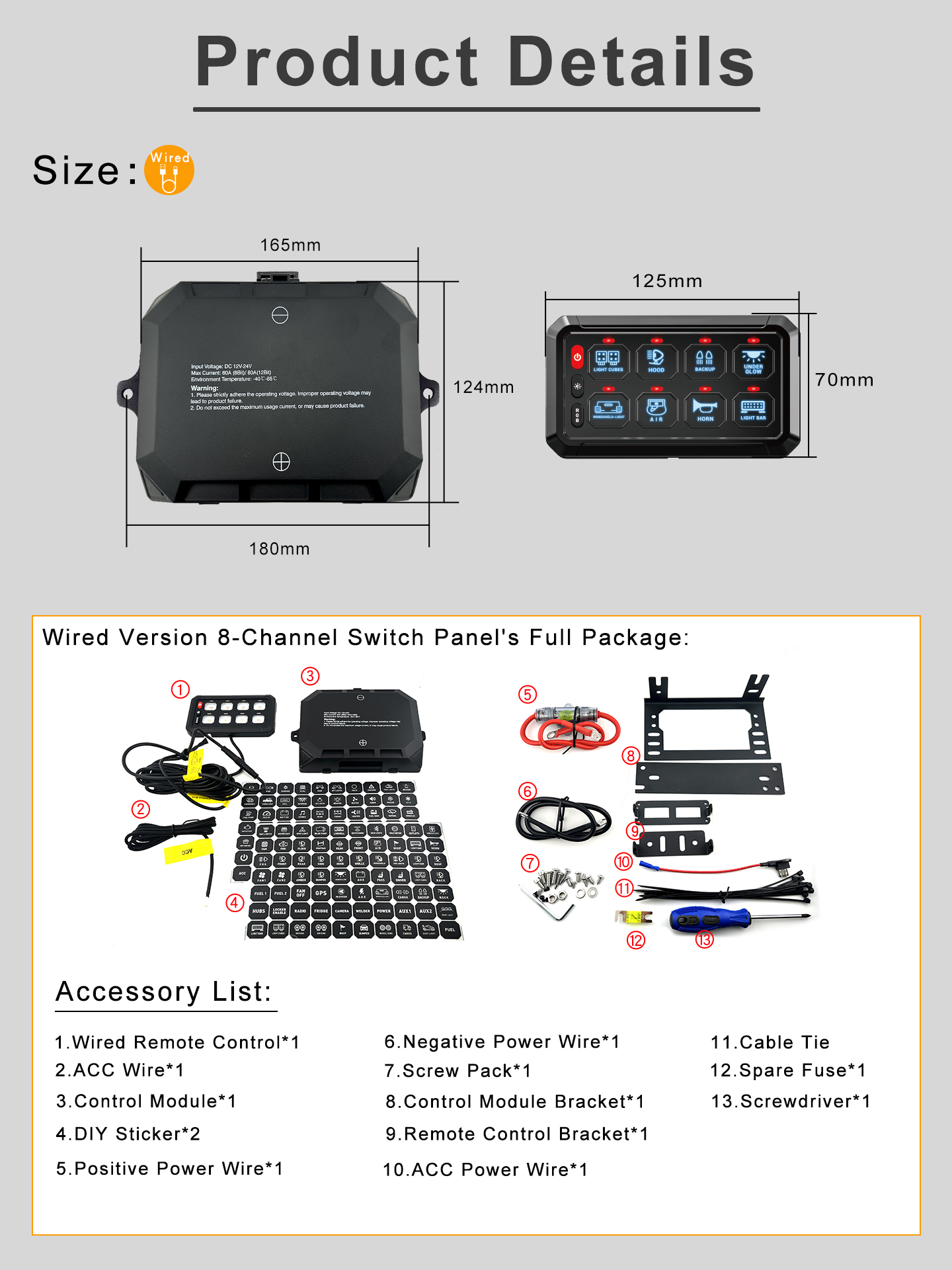

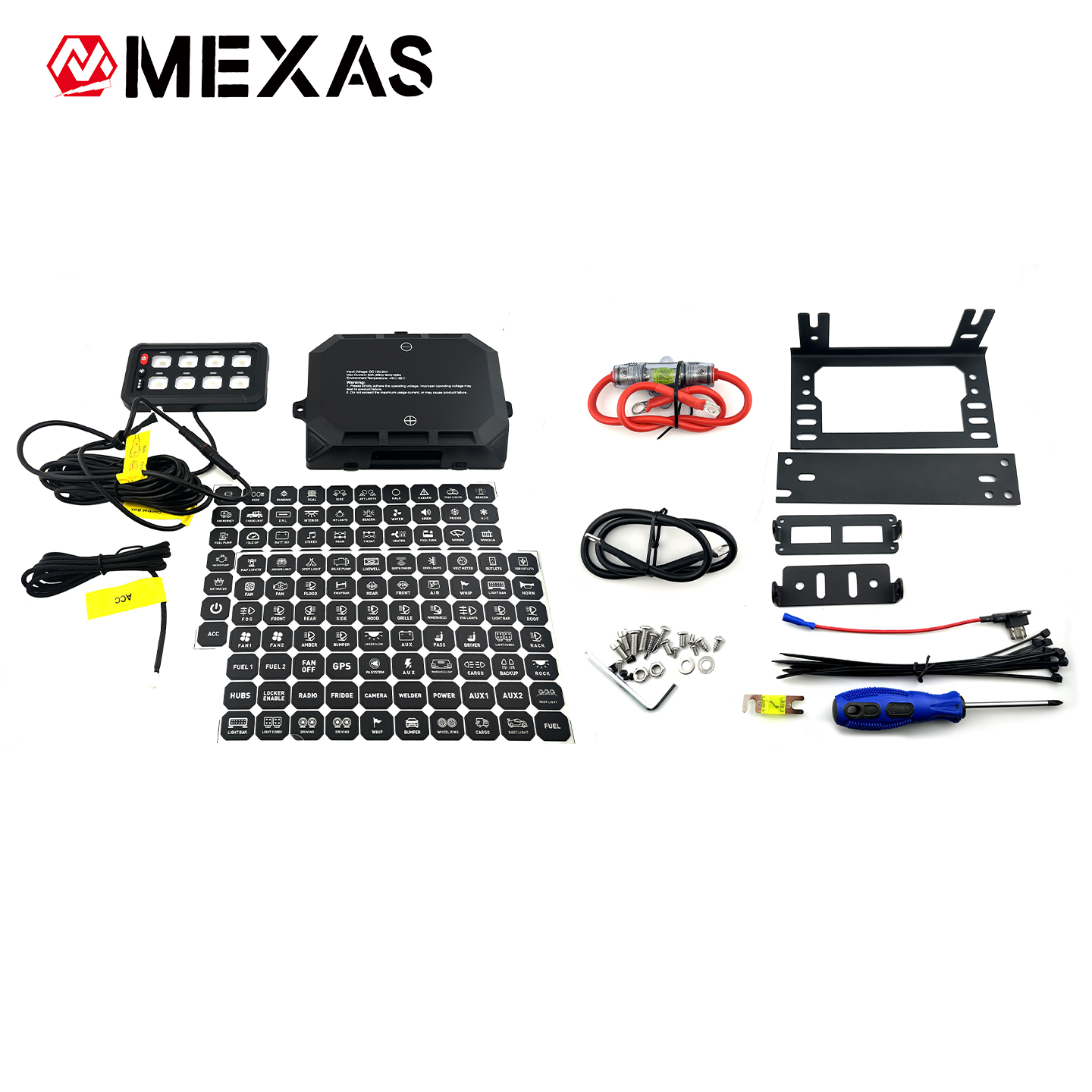

What's included in one package?

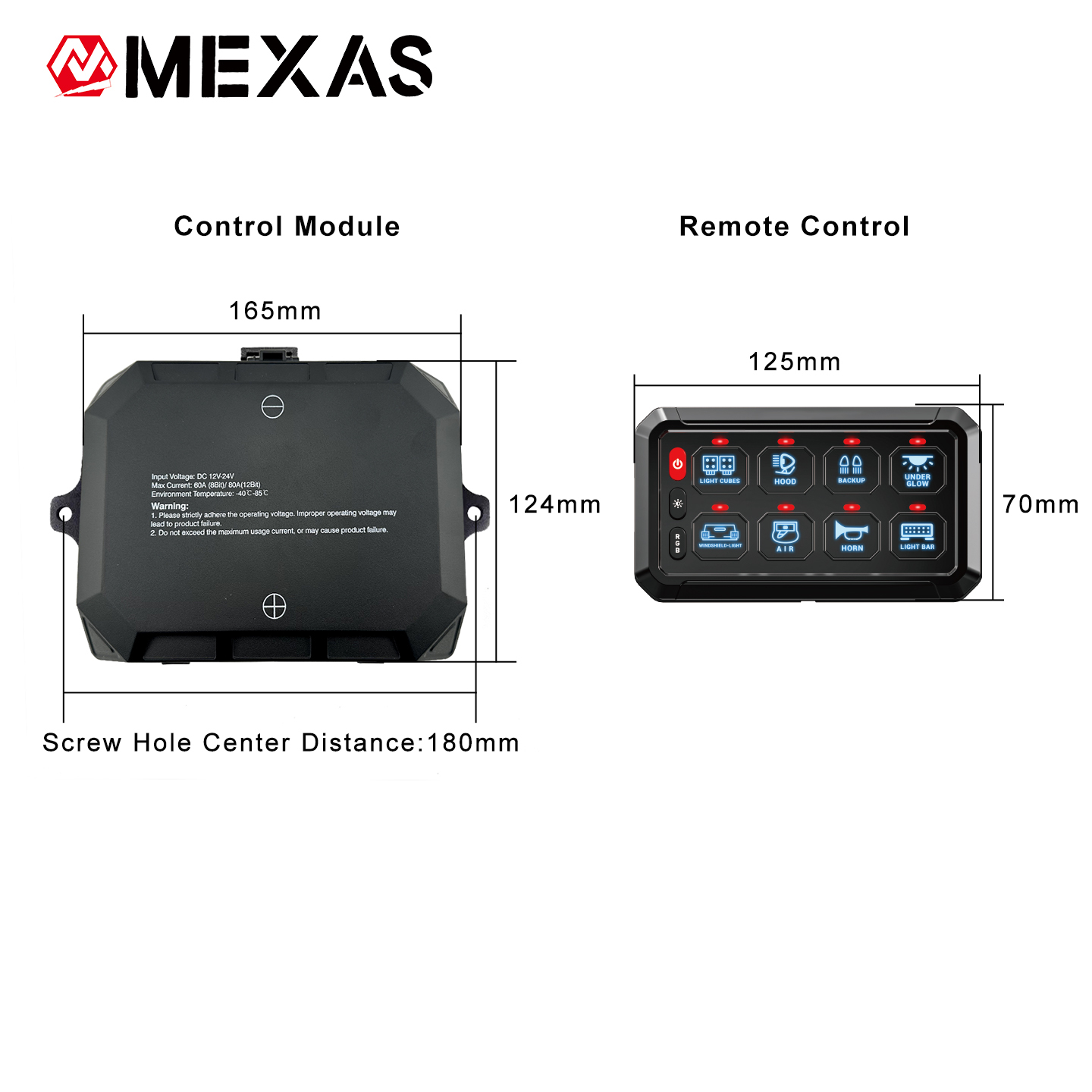

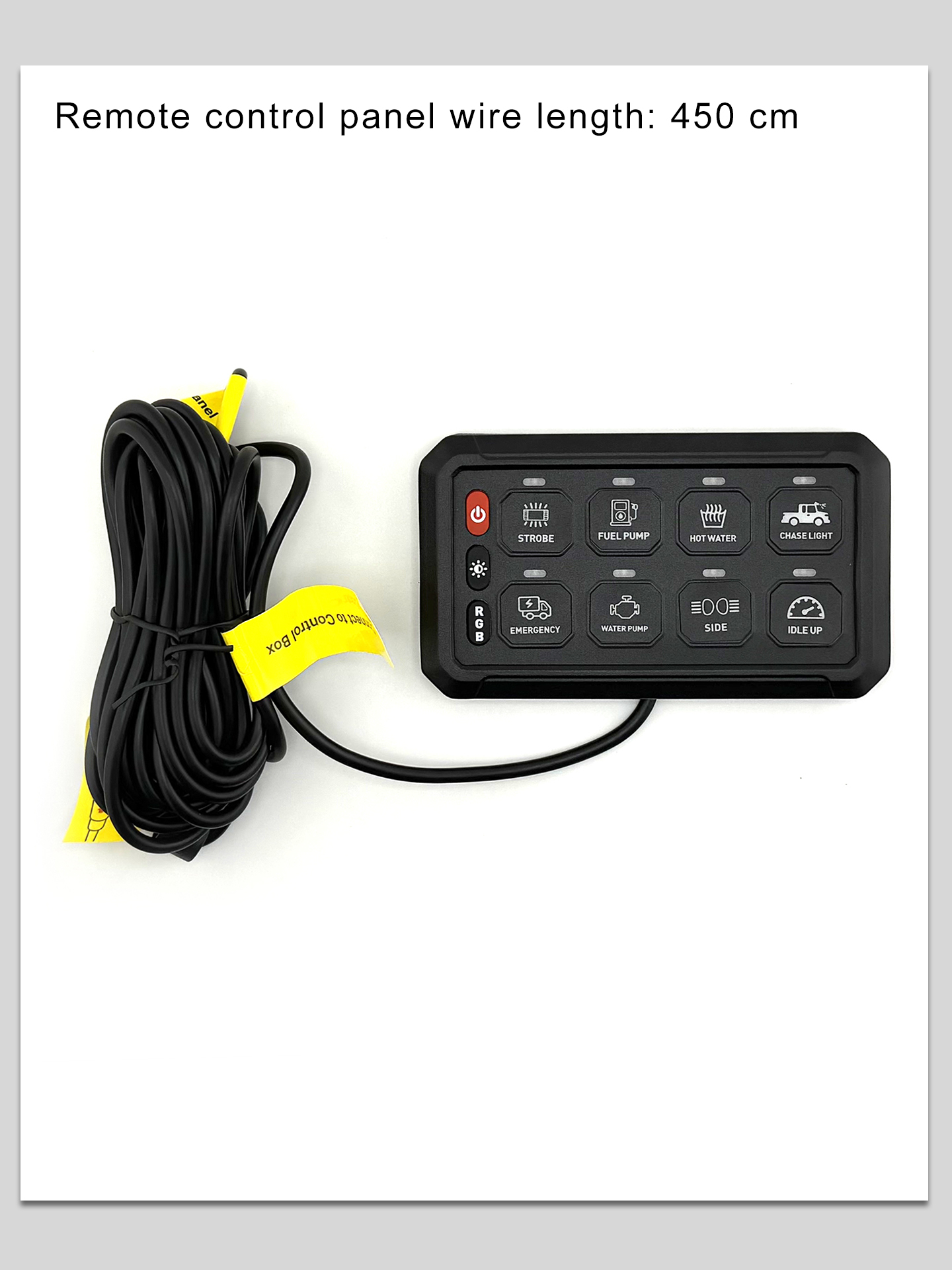

1. Wired 8-Channel Remote Control*1

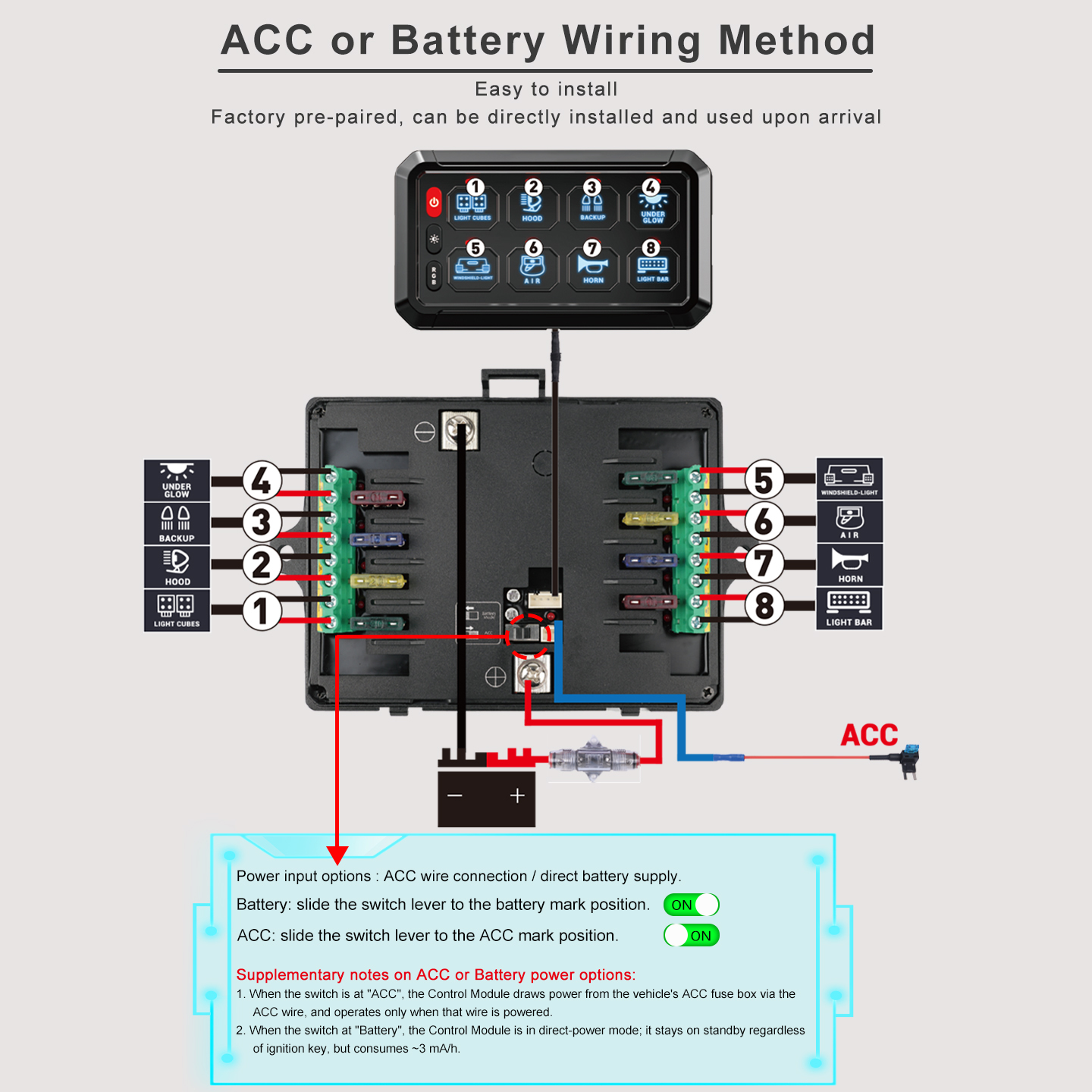

2. ACC Wire*1

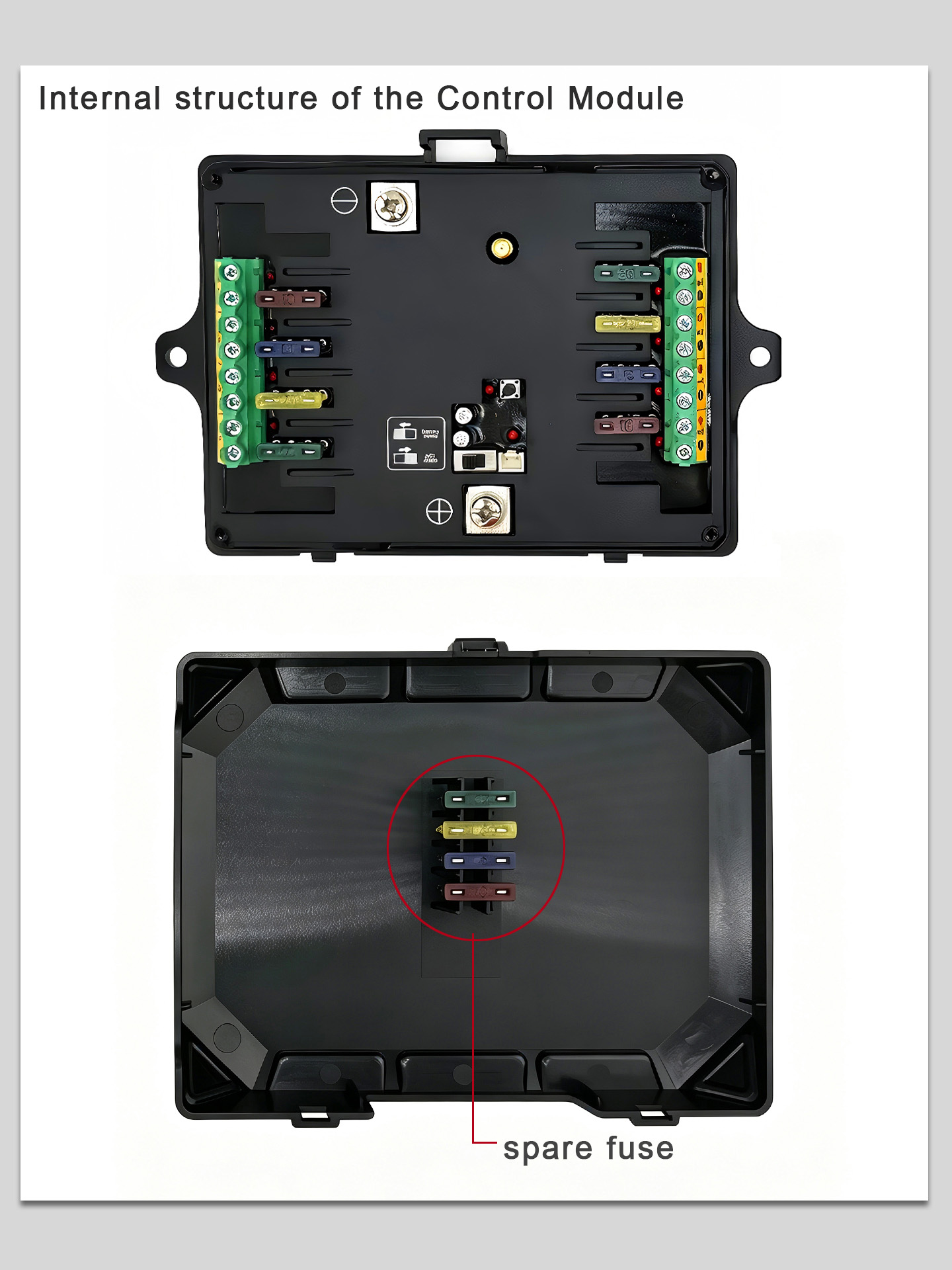

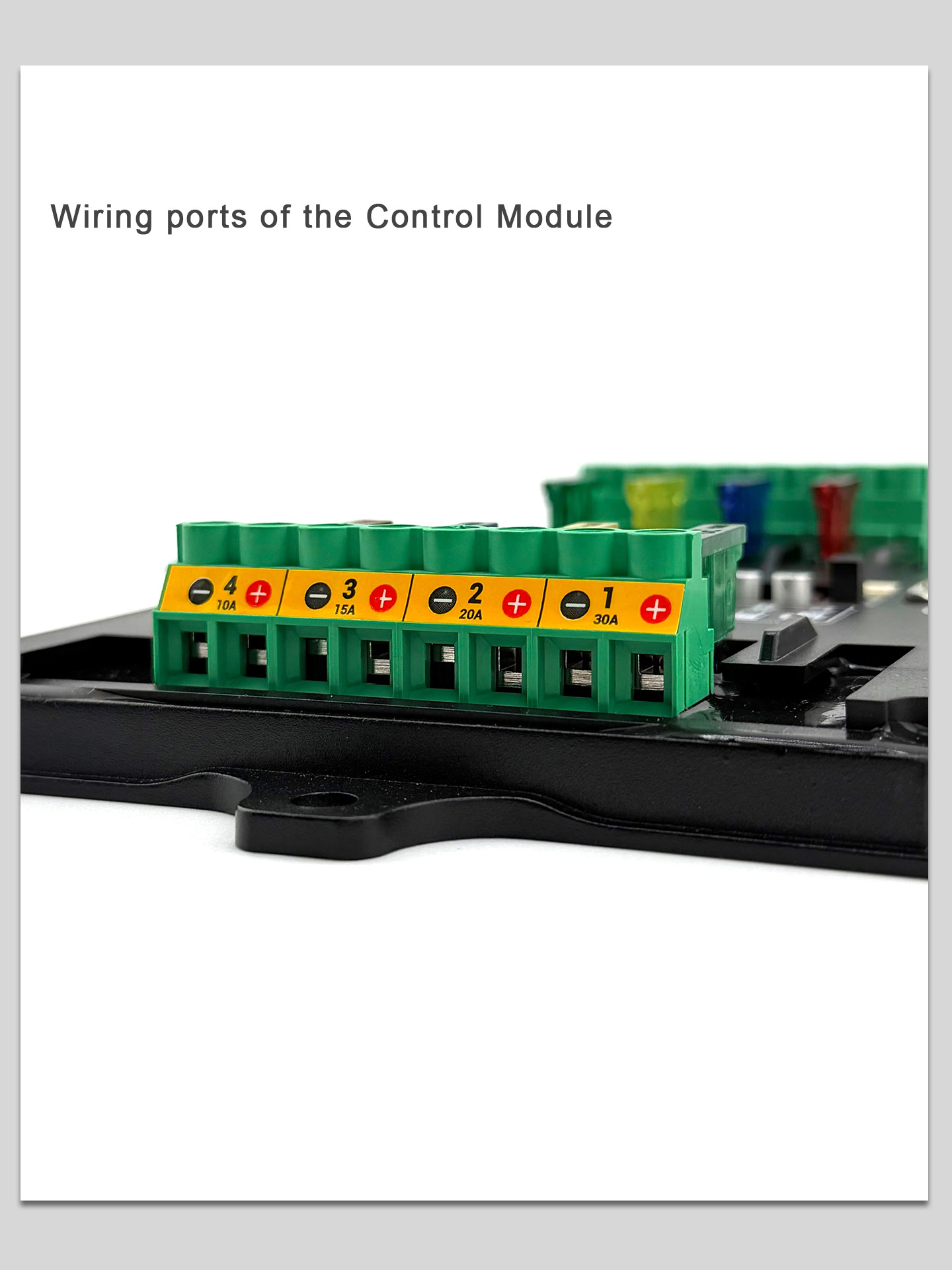

3. 8-Wiring-Port Control Module*1
4. DIY Sticker*2
5. Positive Power Wire*1
6. Negative Power Wire*1
7. Screw Pack*1
8. Control Module Bracket*1

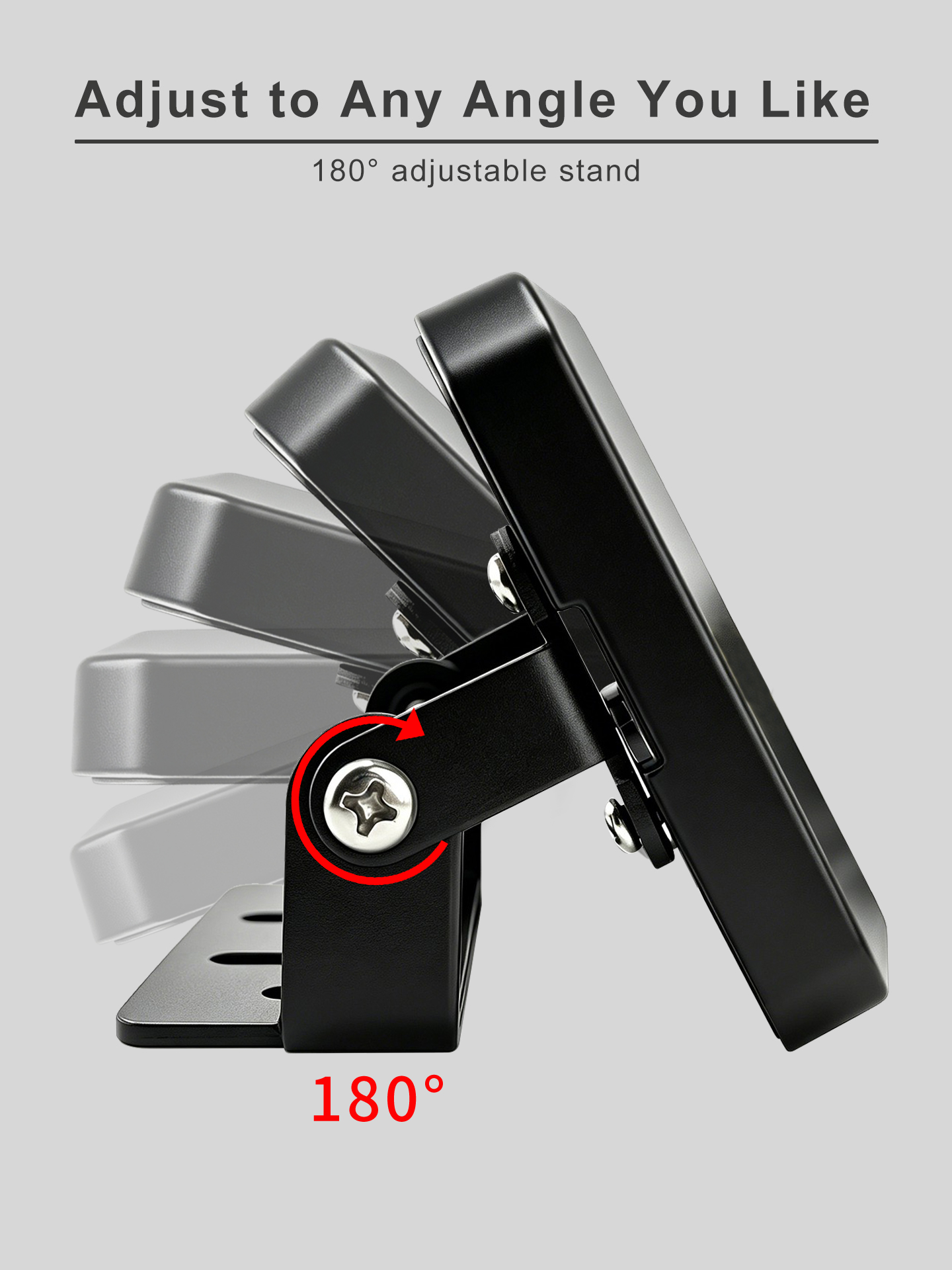

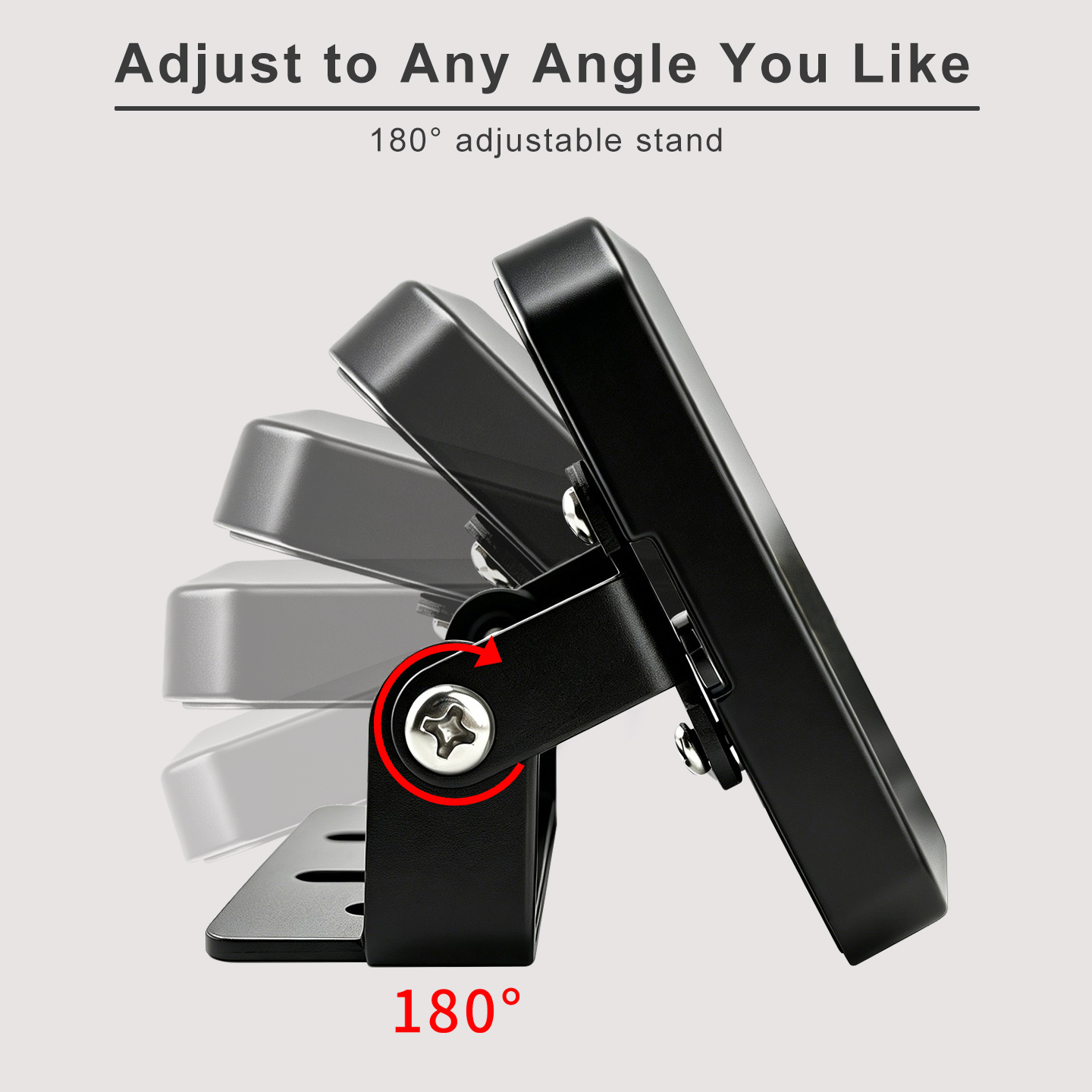

9. Remote Control Bracket*1
10. ACC Power Wire*1
11. Cable Ties
12. Spare Fuse*1
13. Screwdriver*1
